HYDROPULSE® PHP PRECISION SPRAY AUTOMATIC NOZZLES

Pneumatically Actuated Intermittent Spray Nozzles

DESIGN FEATURES

The precise intermittent spray uses liquid pressure as the force for atomization

Improves product quality with uniform, repeatable coverage and drip-free performance

Interchangeable flat fan, full cone, or hollow cone nozzle tips provide a wide range of spray patterns and volumes to match requirements

Pneumatically actuated for precise on/off spray directly on the target

Minimal overspray reduces waste and maintains a clean, safe environment

Straight through porting for fluid recirculation

Hygienic connections and mounting brackets are available options

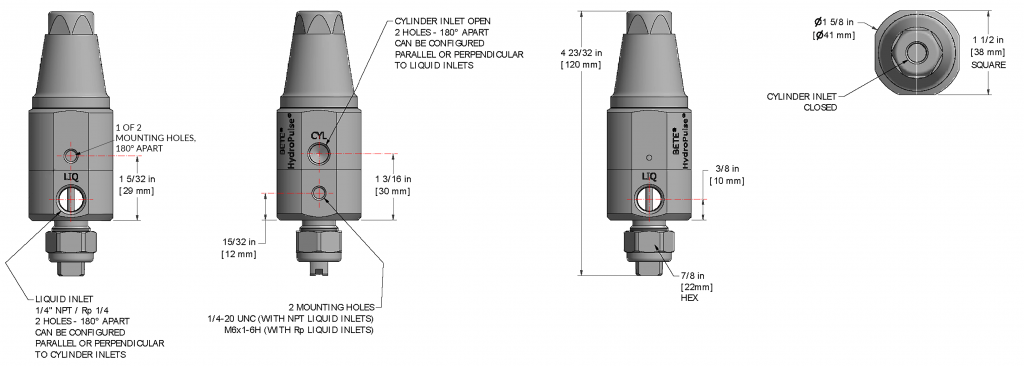

Detail of BETE HydroPulse PHP Dimension Drawing

Product Specifications

Liquid inlet connection
¼” NPT or BSPP, liquid; ⅛” NPT or BSPP, cylinder air; or DN10 tri-clamp
Maximum liquid flow rate
12.6 GPM / 57.7 LPM
Maximum rated pressure
600 PSI / 42 bar
Thermal insulation class
-15° F to 400° F / -26° C to 204° C
Air cylinder pressure
30 PSI to 250 PSI / 2 bar to 17 bar
Air cylinder operation
Single acting (spring return) or double acting
Maximum cycle frequency
3 cycles / sec
Nozzle construction
Stainless steel wetted components, Viton® (FKM) seals

Interchangeable Nozzle Tip Options
