FINZ® AIR SPRAY NOZZLES

Flat Fan Air Nozzles for Drying and Blow-off Applications
Detail Fan Spray Pattern Icon

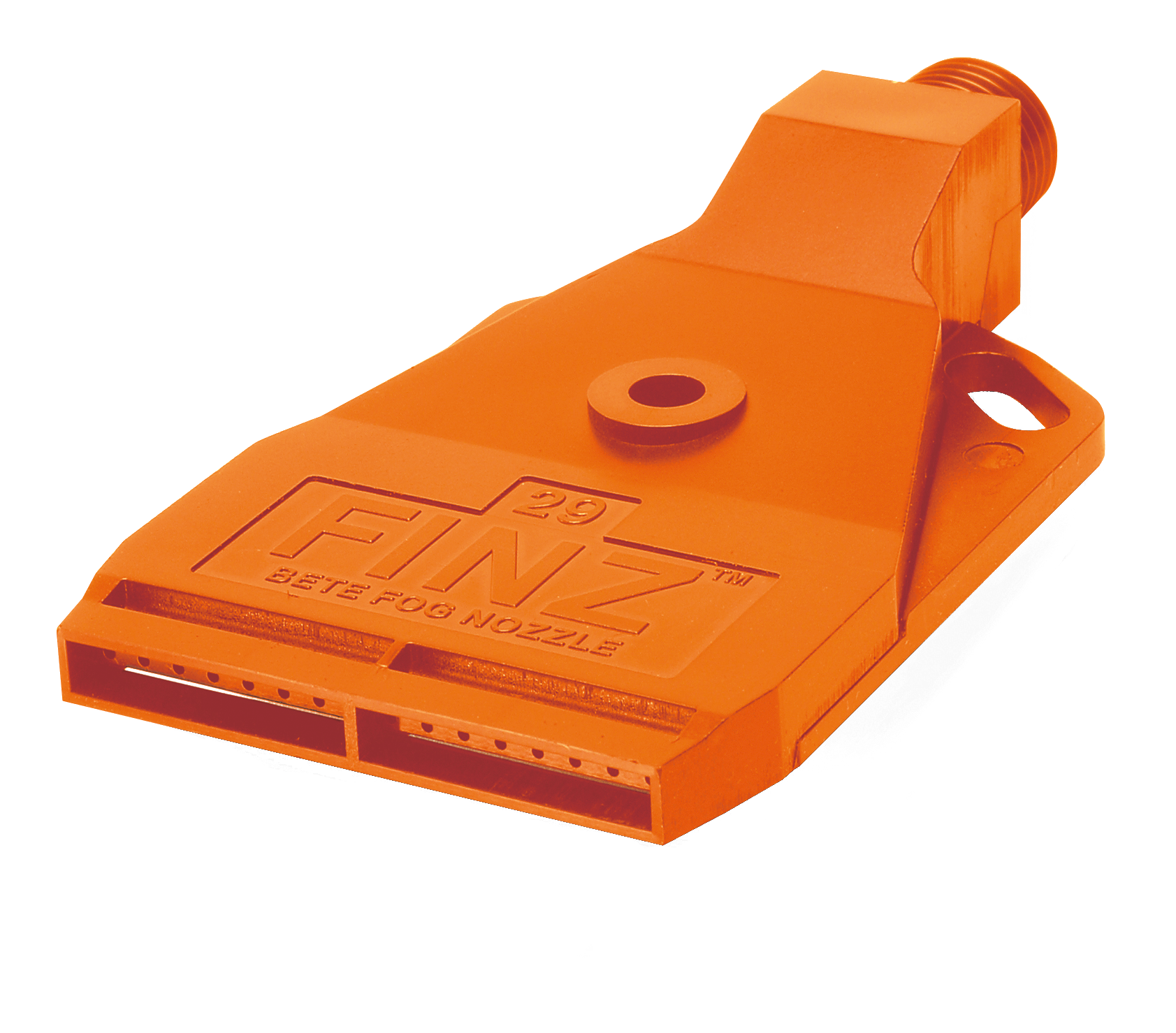

Detail of the BETE FINZ

DESIGN FEATURES

Controlled wide uniform distribution and high impact coverage of compressed air

Can be mounted individually or side-by-side for greater coverage

Efficient air flow rates with unique educator feature

Safe operation—meets OSHA specifications for noise and deadhead pressure

Up to 2 dB quieter than competing designs

Detail of the BETE FINZ Dimensions.

Approvals & Certifications

Meets OSHA specifications for noise & deadhead pressure

AIR FLOW RATES

4 to 41 SCFM at 10 to 90 psi

FLOW RATE RANGE

Maximum operating pressure 100 psi (7 bar)

AVAILABLE CONNECTION TYPES

•¼” Male NPT, BSP

MATERIALS

•Ryton® rated to 300 °F (149 °C) at 40 psi (3 bar)
•ABS rated to 155º (68 ºC) at 100 psi (6.9 bar)
